Primary Emulsifier composition used in Oil Drilling Mud

Basic Info

Model No.: GDGEL-P

Appearance: Liquid

Kind: Mud Additives

Application: Composite Additive

Additional Info

Packaging: 180kg/drum

Productivity: 10000MT/YEAR

Brand: GDGEL

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 4000MT

Certificate: ISO9001

HS Code: 3402

Port: Tianjin

Product Description

Primary Emulsifier for Oil-Base Mud

Drilling Fluids Chemicals  Description:

GDGEL-P serves as a primary emulsifier in oil-base mud systems. It is formulated to give good emulsification, improved thermal stability of the invert emulsion, and enhanced high-temperature, high-pressure (HTHP) filtration control. Through comprehensive tests in a number of oil-base mud formulations with various base oils, mud densities, oil/water ratios and hot-rolling temperatures, it proves that at working temperature up to 177℃ (350℉), CPMUL-P can maintain high ES (electrical stability), low HTHP filtrate and desired rheological property.

Drilling Fluid Properties:

We are pleased to offer CPMUL-P with specification as below:

  1.  Physical chemical Specification

              Appearance:                                                dark mobile liquid

              Odor:                                                            no or slight odor

              Specific Gravity (20℃):                                      0.94

              Flash Point (PMCC):                                       > 65^oC (149^oF)

              Pour Point:                                                    < -10^oC (14^oF)

              Solubility:                                                      soluble in oil. Insoluble in water.

 2.  Mud Performance Specification

                   Yield Point (YP):                                            minimum10lb/100ft2

                   Electrical Stability (ES):                                  minimum 500 Volt

                   HTHP Filtrate @ 121℃ (250°F), 500psi:           maximum 12ml

Oil Based Drilling Mud

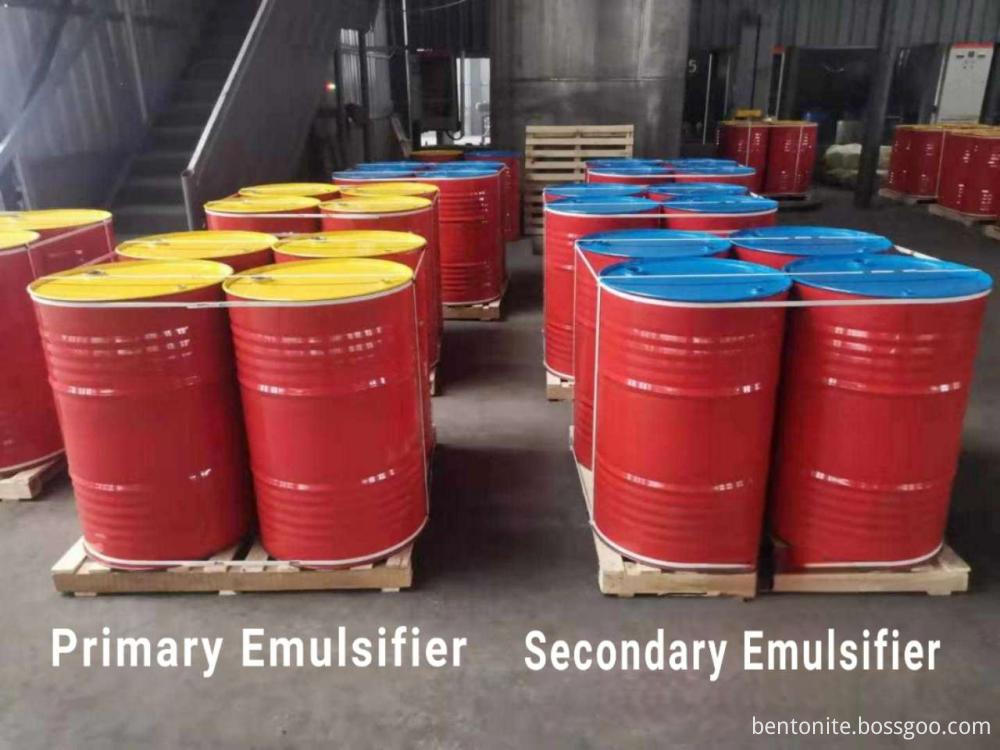

Storage & Package: 180kg/drum ; Stored in dry, cool place.

Company Introduction:

GDNM combines knowledge and experience with the latest plant and technology. Established in 2008, as the up-rising star in the line of modified Bentonite, we have the newest organophilic clay manufacturing facility anywhere in the world. GDNM`s manufacturing plant is built to the latest design and highest safety and production standards. And with our location near Shanghai Port means we can deliver quickly and cost-effectively anywhere in the world. GDNM is committed to environmentally friendly materials for Coating, Paint, Ink, Oil drilling mud, Lubricating Grease, mortar, putties, water treatment etc. industrial. So we centered on waterborne Rheological Additive, at the same time, we make high purity solvent-born Organoclay Rheological additive which is no harmful to the environment. We believe that good quality and service make us to run faster and longer.

What kind of chemical materials you have?

We have Modified Bentonite (Organoclay Rheological Additive), Matting Agent, Primary Emulsifier, Secondary Emulsifier, Fluid Loss Control Agent, Wetting Agent, Lubricant.
